Screenshots of Virtual Flow Lab (VFL)

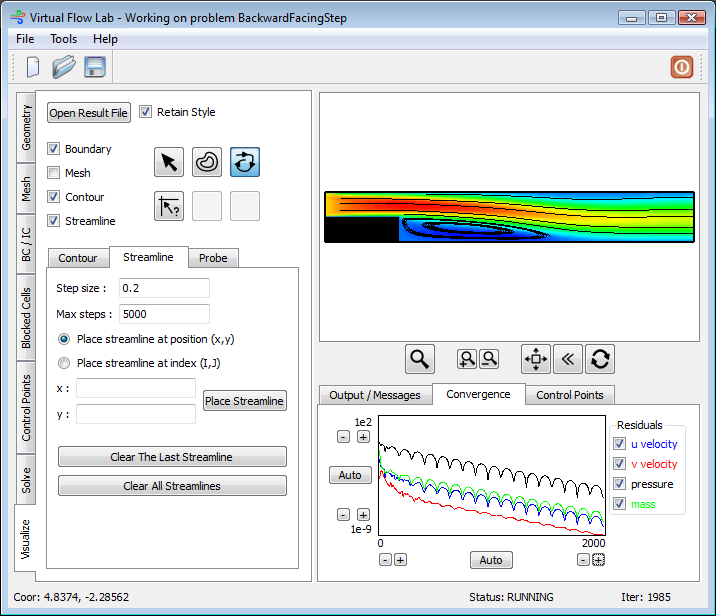

Shot 12/12: Post processing stage of the solution showing streamlines drawn on top of the contour plot of the u velocity component.
